Steel tube Ø 30, Steel, plastic-coated black
Steel tube Ø 30, Steel, plastic-coated black
Middle stay, Polyamide GF black
Middle stay, Polyamide GF black

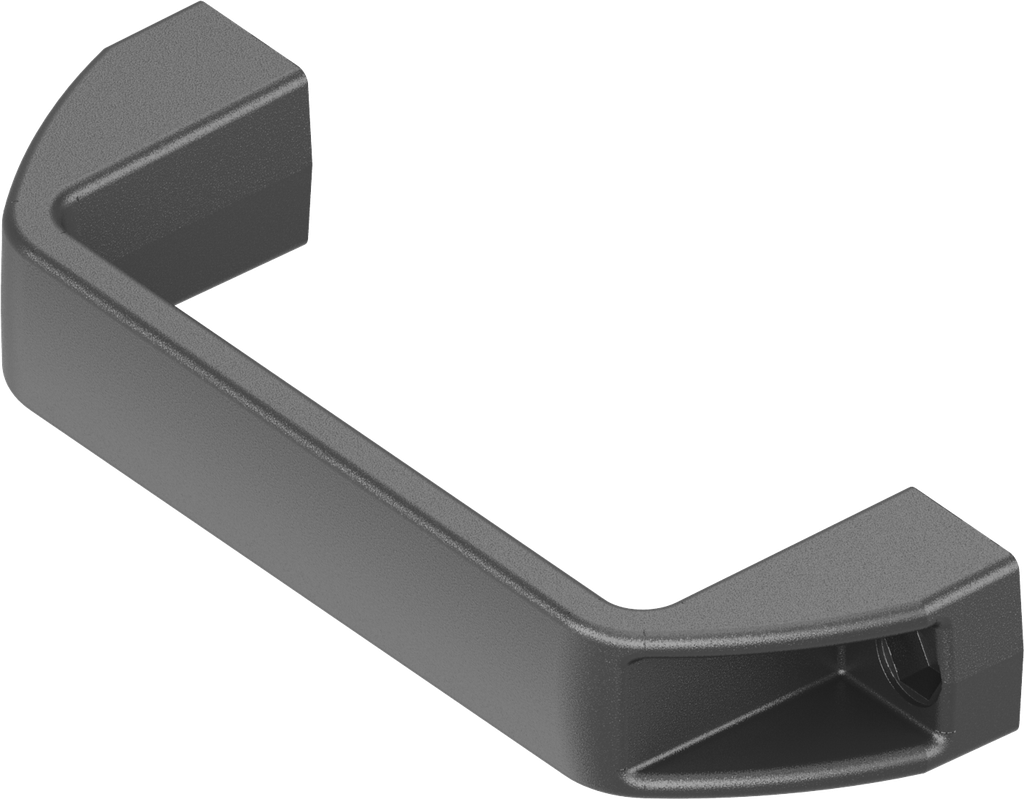

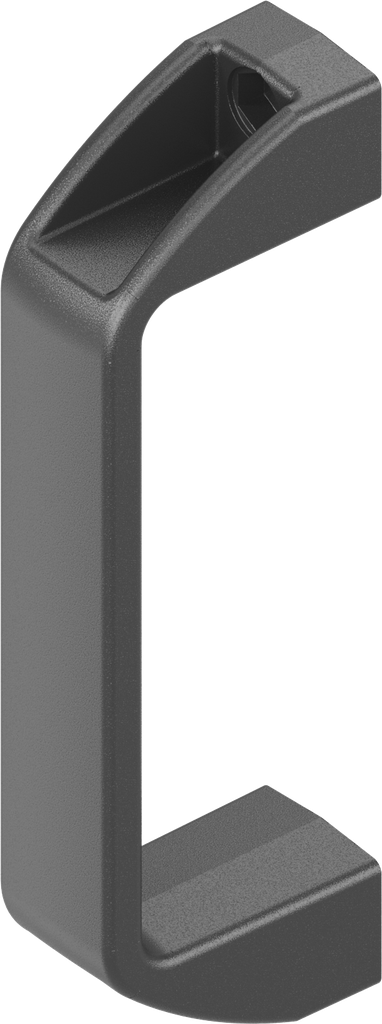

Bow-type handle, Polyamide GF black; 1095-19

https://20251103-uat.emka.opaas.sh/products/1095-19 https://20251103-uat.emka.opaas.sh/web/image/product.template/62213/image_1920?unique=05cb6bc

A = 152 mm

    This combination does not exist.

    Internal Reference: 1095-19
    Barcode: 1095-000019-0000000
    Product Type: Handle
    Material: Polyamide GF
    Program: 1095
    Surface: black
    Catalog sheet: 6A-120

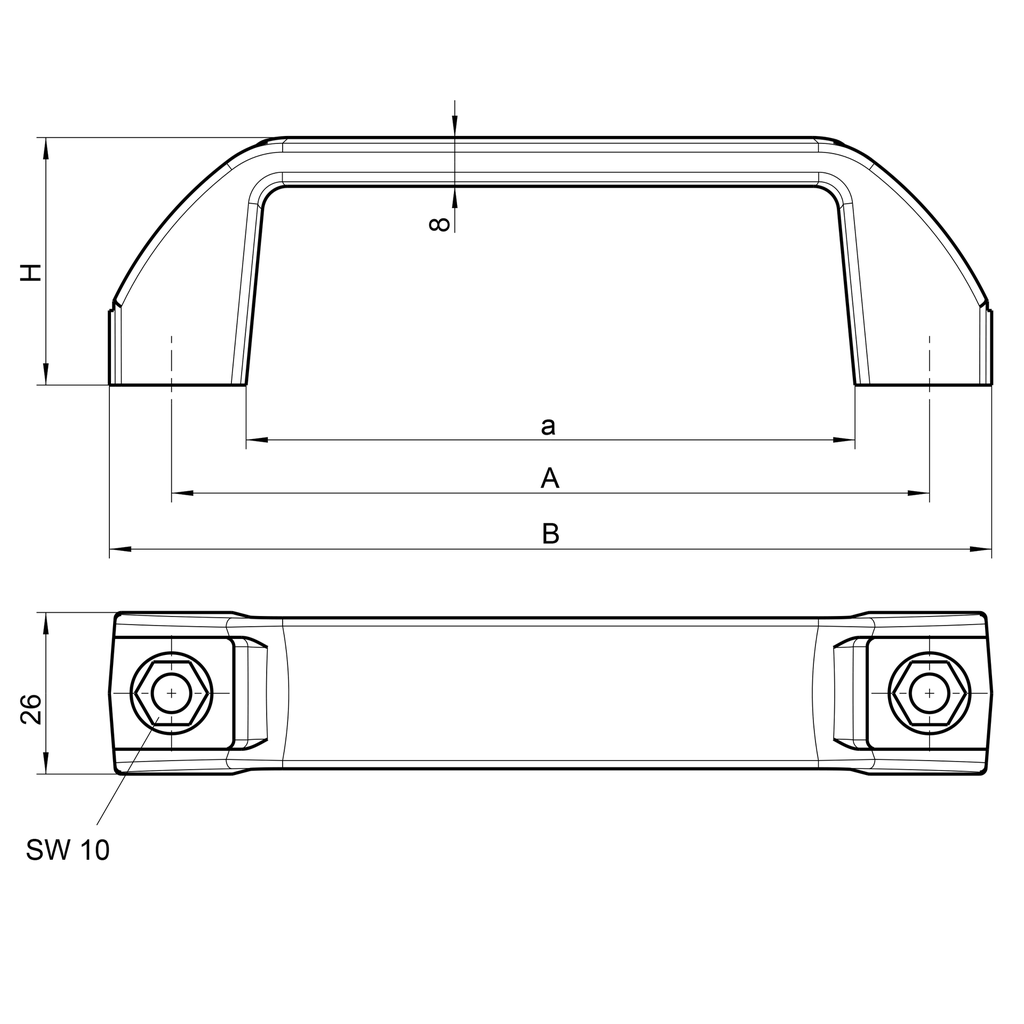

    Dimension a: 118.50 mm
    Dimension A: 152 mm
    Dimension B: 167 mm
    Fixing type of handle: Handle for hexagon screw M6,Handle for cylinder screw M6 according to DIN 4017/1207
    Handle Art(2): Fixed handle, tube handle, bow-type handle and machine handle
    Dimension H: 53.50 mm
    No Specifications
    No Matching Products
    Here you can find the product data sheets and CAD files of this product
